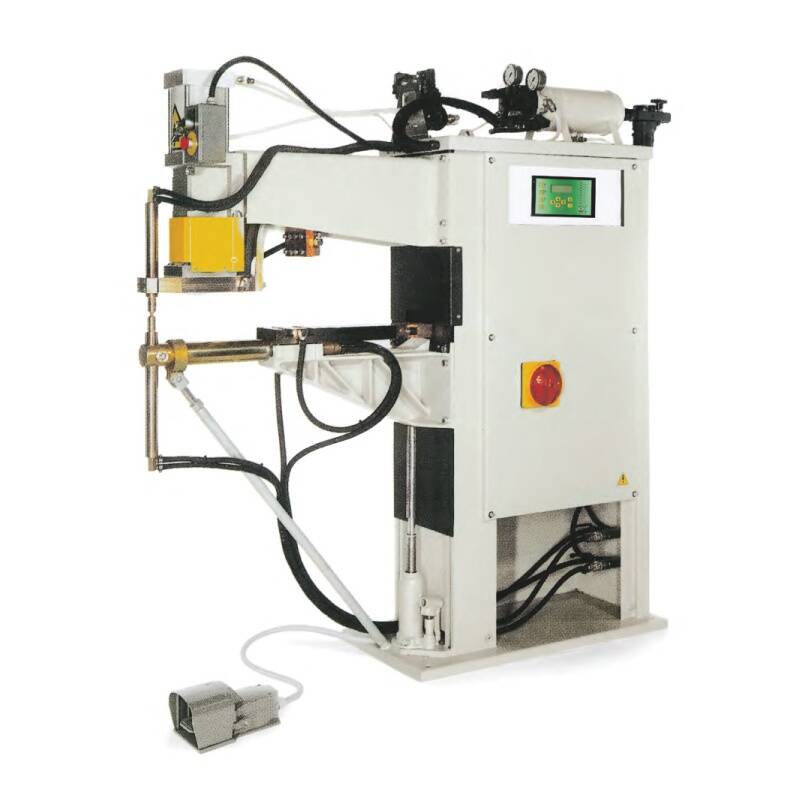

TECNA 8216D press-type spot welder — 160 kVA, air-operated, single-phase AC. Maximum welding current on steel of 24,000 amps with 1,654 lbs of electrode force at 6 bar (standard cylinder). Electrode throat depth of 31.5 in.
The TECNA 8216D pairs a 160 kVA single-phase AC transformer with air-operated actuation in a press-type spot welder configuration. The 8216D provides a maximum welding current of 24,000 amps on steel with a standard electrode force of 1,654 lbs at 6 bar; the optional 1242 daN cylinder upgrade (Art. 8235) increases maximum electrode force to 2,792 lbs. The thermal current rating at 100% duty cycle is 9,300 amps. A water-cooled transformer, electrode holders, and electrodes support extended duty cycles, with epoxy resin-coated windings for long service life. The 8216D offers an electrode throat depth of 31.5 in.
| Weight | 1332 lbs |
|---|---|
| Configuration | Spot |
| Standard Control Unit | TE550 |
| Nominal Power 50% (kVA) | 160 |
| Max Welding Power (kVA) | 407 |
| Max Welding Current (A) | 30000 |
| Max Weld Curr Alum (kA) | 27 |
| Max Weld Curr Steel (kA) | 24 |
| Thermal Current 100% (A) | 9300 |
| No-Load Secondary Voltage (V) | 12.1 |
| Supply | 440 / 480 V / 60 Hz |
| Delayed Fuses (380–415 V) | 315 A |
| Mains Cable (L=30m, 380–415 V) | 2 × 0.11 in² (2 × 70 mm²) |
| Min Gap | 6.89 in. (175 mm) |
| Max Gap | 18.70 in. (475 mm) |
| Throat Depth (L, 31.50 in. arms) | 31.50 in. (800 mm) |
| Max Electrode Force | 1654 lbs (736 daN) |
| Max Elec Force 6 bar (Std) | 1654 lbs (736 daN) |
| Max Elec Force 6 bar (Cyl) | 2792 lbs (1242 daN) |
| Max Electrode Stroke | 3.94 in. (100 mm) |
| Double Stroke (Standard) | 2.36 in. (60 mm) |
| Adj Double Stroke (8236–8237) | 0.00–3.15 in. (0–80 mm) |
| Arm Ø | 2.36 in. (60 mm) |
| Electrode-Holder Ø | 1.26 in. (32 mm) |
| Electrode Taper Ø | 0.75 in. (19.05 mm) |
