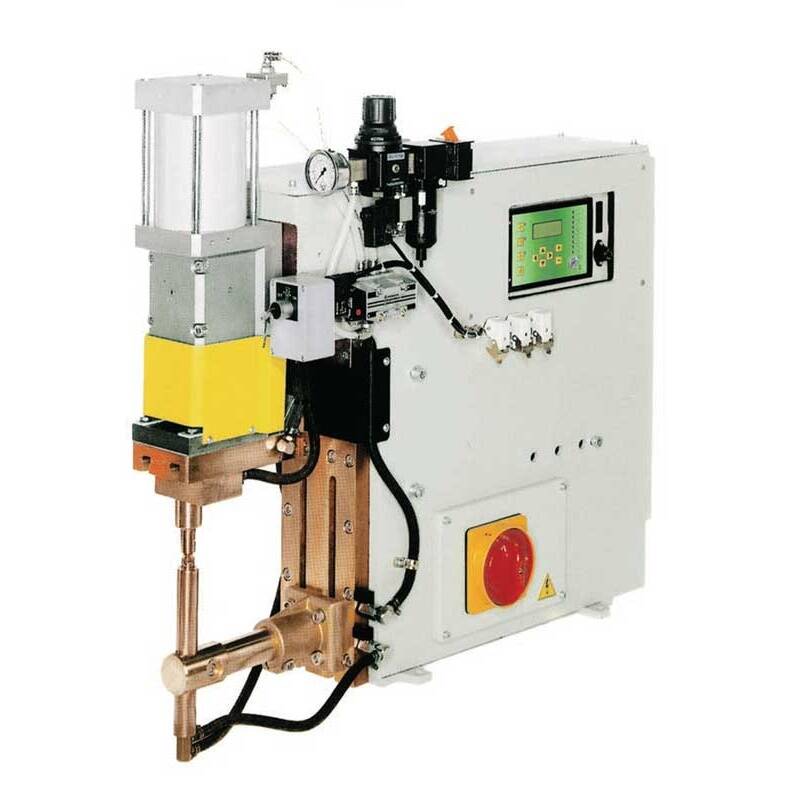

TECNA 2121D spot bench welder — 32 kVA, air-operated, single-phase AC. Maximum welding current of 20,000 amps, maximum electrode force of 674 lbs, and maximum electrode throat depth of 11.02 in. Standard TE550 microprocessor control.
The TECNA 2121D pairs a 32 kVA single-phase AC transformer with air-operated actuation in a spot bench welder configuration. The 2121D provides a maximum welding current of 20,000 amps, a maximum electrode force of 674 lbs, and a maximum electrode throat depth of 11.02 in. The thermal current rating at 100% duty cycle is 5,100 amps. A water-cooled transformer, electrode holders, and electrodes support extended duty cycles, with epoxy resin-coated windings for long service life. The standard TE550 microprocessor weld control is included. Within the 32-63 kVA AC bench range, the 2121D is the 32 kVA spot variant; its projection counterpart at the same power class is the 2122D, which provides a 7.87-in. projection plate throat instead of the 2121D’s 11.02-in. electrode throat.
| Weight | 364 lbs |
|---|---|
| Configuration | Spot |
| Standard Control Unit | TE550 |
| Nominal Power 50% (kVA) | 32 |
| Max Welding Power (kVA) | 83 |
| Max Welding Current (A) | 23000 |
| Max Weld Curr Alum (kA) | 20.9 |
| Max Weld Curr Steel (kA) | 18.4 |
| Thermal Current 100% (A) | 5100 |
| No-Load Secondary Voltage (V) | 4.4 |
| Supply | 440 V / 60 Hz |
| Mains Cable (L=30m, 380–415 V) | 0.04 in² (25 mm²) |
| Delayed Fuses (380–415 V) | 63 A |
| Arm Ø | 1.93 in. (49 mm) |
| Electrode-Holder Ø | 0.98 in. (25 mm) |
| Electrode Taper Ø | 0.71 in. (18 mm) |
| Min Gap | 6.10 in. (155 mm) |
| Max Gap | 11.22 in. (285 mm) |
| Min Throat Depth | 7.87 in. (200 mm) |
| Max Electrode Force | 674 lbs (300 daN) |
| Max Elec Force 6 bar (Std) | 674 lbs (300 daN) |
| Electrode Stroke | 3.15 in. (80 mm) |
| Double Stroke (Standard) | 2.36 in. (60 mm) |
| Compressed Air (Min/Max) | 94–145 psi (6.5–10 bar) |
| Air Consump /1000 (Std 20mm) | 60 ft³ (1.7 Nm³) |
| Air Consump /1000 (Max) | 191 ft³ (5.4 Nm³) |
| Air Supply Hose Ø | 0.39 in. (10 mm) |
| Water Cooling Flow | 1.59 gpm (6 lpm) |
| Aerial Noise | <70 dB(A) |
| Power Supply | |
| Actuator Type | |
| Product Type |
