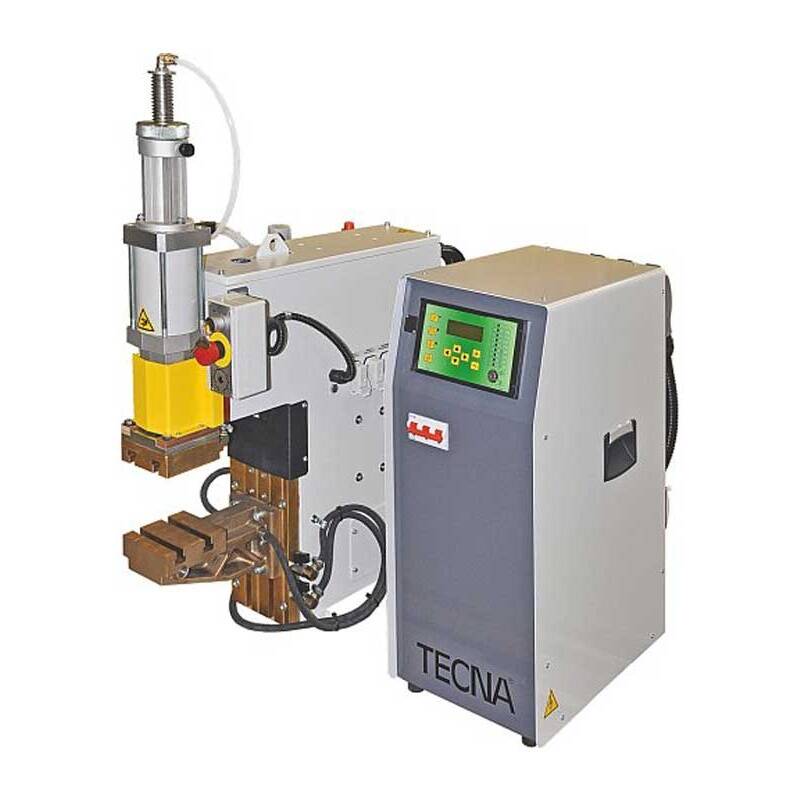

TECNA 2117D spot bench welder — 90 kVA, air-operated, MFDC / inverter. Maximum welding current of 32,000 amps, maximum electrode force of 1,654 lbs, and maximum electrode throat depth of 11.02 in. Standard 1594W control cabinet.
The TECNA 2117D pairs a 90 kVA MFDC / inverter transformer with air-operated actuation in a spot bench welder configuration. The 2117D provides a maximum welding current of 32,000 amps, a maximum electrode force of 1,654 lbs, and a maximum electrode throat depth of 11.02 in. The thermal current rating at 100% duty cycle is 6,400 amps. TECNA MFDC inverter technology delivers weld-to-weld repeatability and more efficient energy use than comparable single-phase AC welders. The standard 1594W control cabinet is included. Within the MFDC bench range, the 2117D is the 90 kVA spot flagship; its projection counterpart at the same power class is the 2118D, which provides a 9.06-in. projection plate throat instead of the 2117D’s 11.02-in. electrode throat.
| Weight | 392 lbs |
|---|---|
| Configuration | Spot |
| Standard Control Unit | 1594W |
| Nominal Power 20% (kVA) | 142 |
| Nominal Power 50% (kVA) | 90 |
| Nominal Power 100% (kVA) | 64 |
| Max Welding Current (A) | 32000 |
| Max Weld Curr 50mΩ Load (kA) | 32 |
| Max Weld Curr 100mΩ Load (kA) | 30 |
| Max Weld Curr 200mΩ Load (kA) | 22 |
| No-Load Secondary Voltage (V) | 10.9 |
| Thermal Current 100% (A) | 6400 |
| Supply | 400 V / 50 Hz |
| Mains Cable (L=30m, 380–415 V) | 0.05 in² (35 mm²) |
| Delayed Fuses (380–415 V) | 100 A |
| Electrode Taper Ø | 0.71 in. (18 mm) |
| Min Gap | 6.61 in. (168 mm) |
| Max Gap | 11.73 in. (298 mm) |
| Min Throat Depth | 11.02 in. (280 mm) |
| Max Electrode Force | 1654 lbs (736 daN) |
| Max Elec Force 6 bar (Std) | 1654 lbs (736 daN) |
| Max Elec Force 6 bar (Cyl) | 2792 lbs (1242 daN) |
| Electrode Stroke | 3.94 in. (100 mm) |
| Double Stroke (Standard) | 3.15 in. (80 mm) |
| Compressed Air | 94 psi (6.5 bar) |
| Air Consump /1000 (Std 20mm) | 162 ft³ (4.6 Nm³) |
| Air Consump /1000 (Max) | 544 ft³ (15.4 Nm³) |
| Air Supply Hose Ø | 0.59 in. (15 mm) |
| Water Cooling Flow | 2.64 gpm (10 lpm) |
| Aerial Noise | 78 dB(A) |
| Control Unit Net Weight | 139 lbs (63 kg) |
