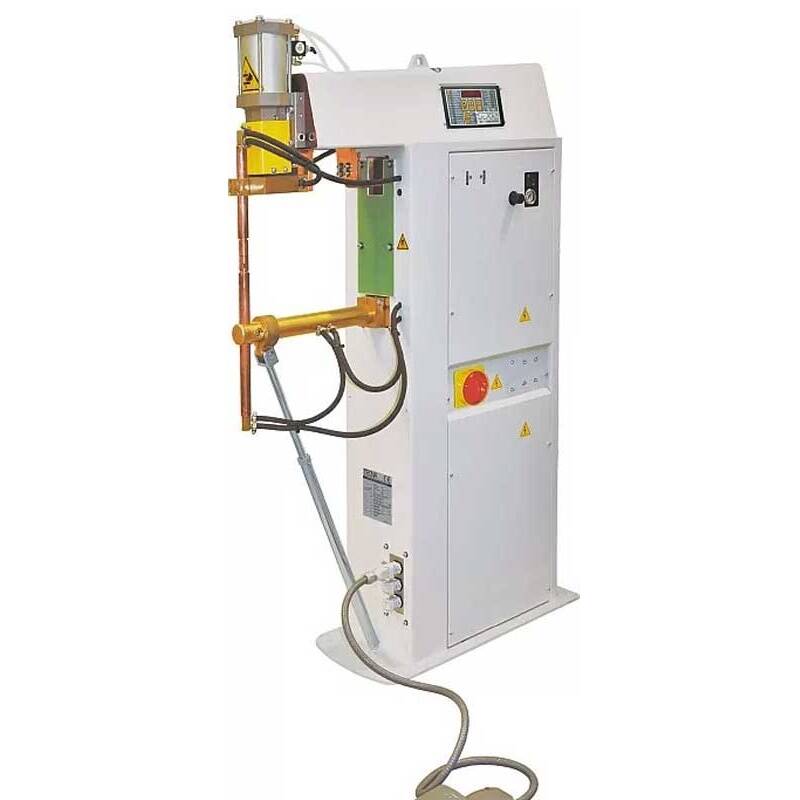

TECNA 4666NX Press-Type Spot Welder — 50 kVA Air-Operated Single-Phase AC

Description

The TECNA 4666NX pairs a 50 kVA single-phase AC transformer with air-operated, linear-action actuation in a press-type spot welder configuration. The 4666NX provides a maximum short-circuit current of 17,000 amps, with maximum electrode force of 1,057 lbs. The thermal current rating at 100% duty cycle is 5,700 amps. A water-cooled transformer, electrode holders, and electrodes support extended duty cycles, with epoxy resin-coated windings for long service life. The fixed 15.75 in. throat depth accommodates a wide range of workpiece geometries. The NX designation indicates the US-market configuration. The standard TE101 microprocessor weld control is included; the TE550 microprocessor weld control is available as an upgrade option for advanced parameters and USB interface.

Features

• 50 kVA single-phase AC transformer with epoxy resin-coated, water-cooled windings.
• Maximum short-circuit current of 17,000 amps with maximum electrode force of 1,057 lbs.
• Linear-action press-type configuration with a fixed 15.75 in. throat depth
• Standard TE101 microprocessor weld control; optional upgrade to TE550 control for advanced parameters and USB interface.
• Two-stage electric foot control for clamping and welding; two-hand safety control available on request.
• Built-in compressed air filter unit; lubrication-free pneumatic components eliminate oil mist.
• Water-cooled arms, electrodes, and electrode holders for sustained duty cycles.

Installation Requirements

• Water cooling: 4 L/min flow at 2.5 bar minimum pressure.
• Net weight: 496 lbs. Sound level <70. Insulation class F.
