TECNA 4643N rocker arm spot welder — 25 kVA, foot-operated, single-phase AC. Maximum welding current of 14,400 amps, maximum electrode force of 539 lbs, and maximum throat depth of 21.65 in. with adjustable arms, stroke, and throat. Te101 microprocessor control.

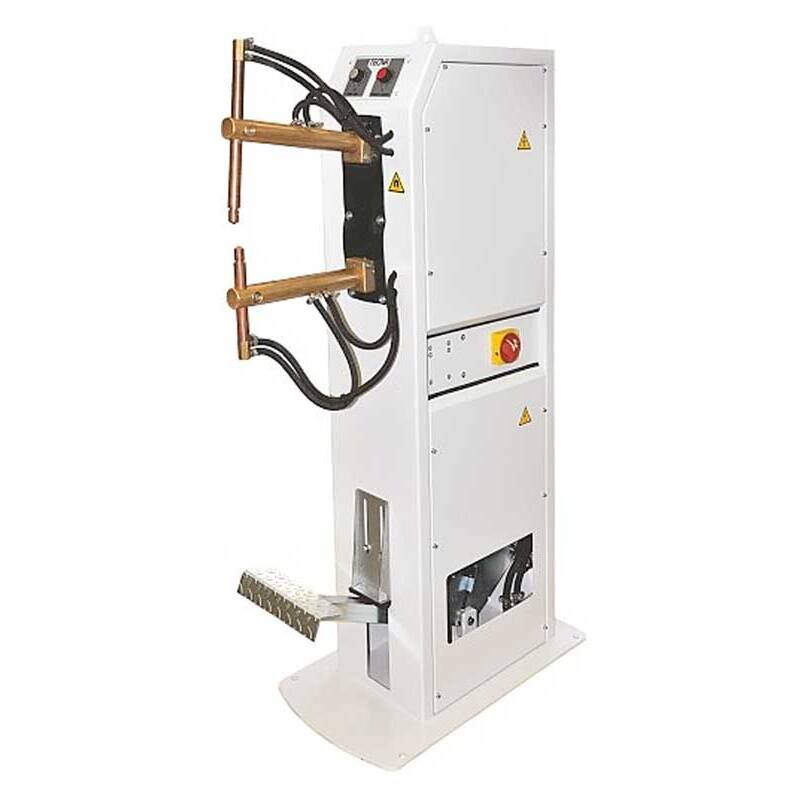

The TECNA 4643N pairs a 25 kVA single-phase AC transformer with mechanical foot-pedal actuation. The 4643N provides a maximum welding current of 14,400 amps, a maximum electrode force of 539 lbs, and a maximum throat depth of 21.65 in. Arm length, electrode stroke, and throat depth are all independently adjustable to accommodate varied part geometries. A water-cooled, epoxy-resin-coated transformer supports extended duty cycles. The standard TE101 microprocessor weld control is front-mounted for real-time parameter viewing. Within the 4640-series, the 4643N is the 25 kVA foot-operated model with a 21.65-in. maximum throat, sharing the throat depth of the 4640N and 4641N while delivering the same 25 kVA welding power as the higher-throat 4644N.
| Weight | 320 lbs |
|---|---|
| Configuration | Rocker Arm Spot |
| Adjustable Arm Depth | Yes |
| Nominal Power 50% (kVA) | 25 |
| Max Welding Power (kVA) | 68 |
| No-Load Secondary Voltage (V) | 4.6 |
| Max Welding Current (A) | 18000 |
| Max Weld Curr Lt Alloys (kA) | 16.3 |
| Max Weld Curr Steel (kA) | 14.4 |
| Thermal Current 100% (A) | 3800 |
| Supply | 220 / 440 V / 60 Hz |
| Delayed Fuses (220 V) | 100 A |
| Delayed Fuses (440 V) | 50 A |
| Mains Cable (≤30m, 220–440 V) | 0.02 in² (16 mm²) |
| Insulation Class | F |
| Min Throat Depth | 9.06 in. (230 mm) |
| Max Electrode Force | 539 lbs (240 daN) |
| Max Elec Force (Min Depth) | 539 lbs (240 daN) |
| Electrode Stroke (Min Depth) | 0.31–1.73 in. (8–44 mm) |
| Max Throat Depth | 21.65 in. (550 mm) |
| Max Elec Force (Max Depth) | 213 lbs (95 daN) |
| Electrode Stroke (Max Depth) | 0.59–3.35 in. (15–85 mm) |
| SC Current @ Max Arm Len (kA) | 13 |
| Water Cooling Flow | 0.98 gpm (3.7 lpm) |
| Min Water Pressure | 36 psi (2.5 bar) |
| Aerial Noise | <70 dB(A) |
| Arm Ø | 1.57 in. (40 mm) |
| Electrode-Holder Ø | 0.87 in. (22 mm) |
| Electrode Taper Ø | 0.58 in. (14.8 mm) |
| Electrode Taper Standard | 4RW/1MT |
