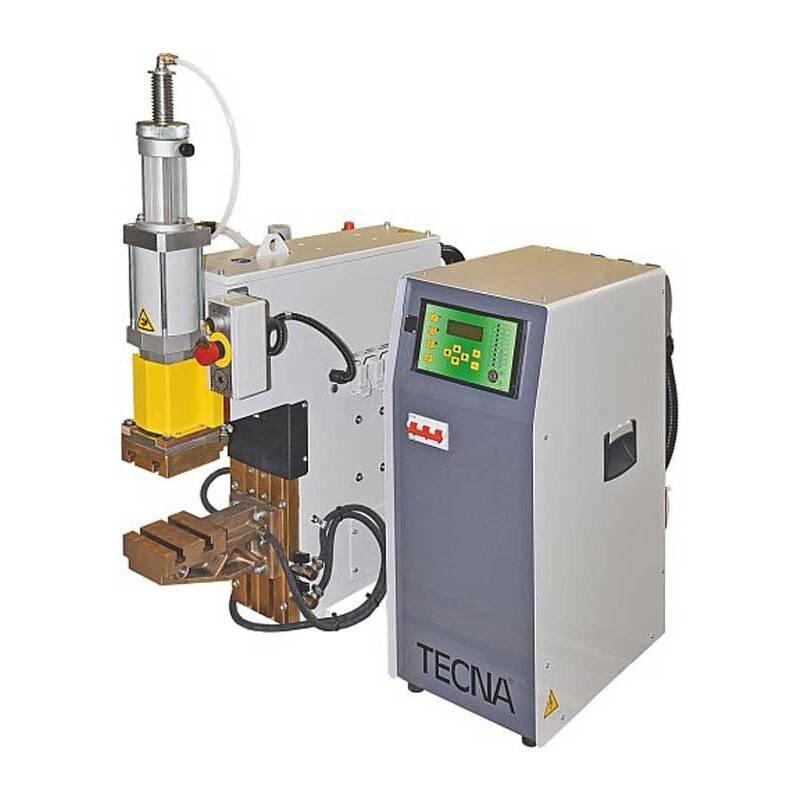

TECNA 2114F spot bench welder — 56 kVA, air-operated, MFDC / inverter. Maximum welding current of 25,000 amps, maximum electrode force of 1,056 lbs, and maximum electrode throat depth of 9.84 in. Standard 1593NA control cabinet.
The TECNA 2114F pairs a 56 kVA MFDC / inverter transformer with air-operated actuation in a spot bench welder configuration. The 2114F provides a maximum welding current of 25,000 amps, a maximum electrode force of 1,056 lbs, and a maximum electrode throat depth of 9.84 in. The thermal current rating at 100% duty cycle is 4,800 amps. TECNA MFDC inverter technology delivers weld-to-weld repeatability and more efficient energy use than comparable single-phase AC welders. The standard 1593NA control cabinet is included. Within the MFDC bench range, the 2114F delivers 56 kVA in a spot configuration; its projection counterpart at the same power class is the 2115F, which provides an 8.27-in. projection plate throat instead of the 2114F’s 9.84-in. electrode throat.
| Weight | 366 lbs |
|---|---|
| Configuration | Spot |
| Standard Control Unit | 1593NA |
| Nominal Power 20% (kVA) | 88 |
| Nominal Power 50% (kVA) | 56 |
| Nominal Power 100% (kVA) | 40 |
| Max Welding Current (A) | 25000 |
| Max Weld Curr 50mΩ Load (kA) | 25 |
| Max Weld Curr 100mΩ Load (kA) | 24 |
| Max Weld Curr 200mΩ Load (kA) | 18 |
| No-Load Secondary Voltage (V) | 9.3 |
| Thermal Current 100% (A) | 4800 |
| Supply | 400 V / 50 Hz |
| Mains Cable (L=30m, 380–415 V) | 0.04 in² (25 mm²) |
| Delayed Fuses (380–415 V) | 63 A |
| Electrode Taper Ø | 0.71 in. (18 mm) |
| Min Gap | 6.14 in. (156 mm) |
| Max Gap | 11.26 in. (286 mm) |
| Min Throat Depth | 9.84 in. (250 mm) |
| Max Electrode Force | 1056 lbs (470 daN) |
| Max Elec Force 6 bar (Std) | 1056 lbs (470 daN) |
| Electrode Stroke | 3.94 in. (100 mm) |
| Double Stroke (Standard) | 2.36 in. (60 mm) |
| Compressed Air | 94 psi (6.5 bar) |
| Air Consump /1000 (Std 20mm) | 92 ft³ (2.6 Nm³) |
| Air Consump /1000 (Max) | 307 ft³ (8.7 Nm³) |
| Air Supply Hose Ø | 0.39 in. (10 mm) |
| Water Cooling Flow | 2.64 gpm (10 lpm) |
| Aerial Noise | 74 dB(A) |
| Control Unit Net Weight | 101 lbs (46 kg) |
