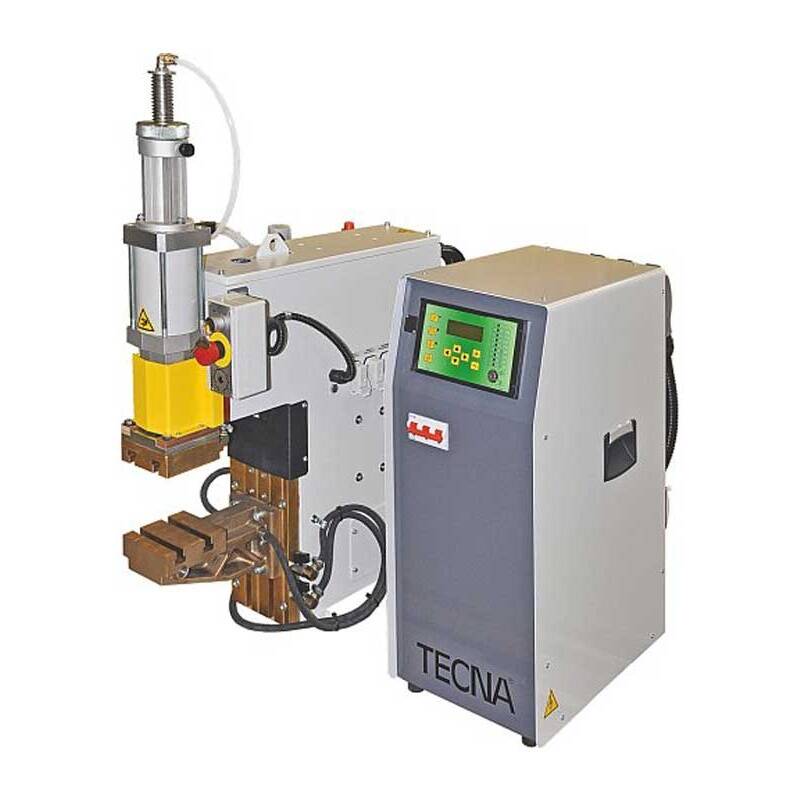

TECNA 2112F spot bench welder — 29 kVA, air-operated, MFDC / inverter. Maximum welding current of 19,000 amps, maximum electrode force of 420 lbs, and maximum electrode throat depth of 6.3 in. Standard 1592NA control cabinet.
The TECNA 2112F pairs a 29 kVA MFDC / inverter transformer with air-operated actuation in a spot bench welder configuration. The 2112F provides a maximum welding current of 19,000 amps, a maximum electrode force of 420 lbs, and a maximum electrode throat depth of 6.3 in. The thermal current rating at 100% duty cycle is 4,000 amps. TECNA MFDC inverter technology delivers weld-to-weld repeatability and more efficient energy use than comparable single-phase AC welders. The standard 1592NA control cabinet is included. Within the MFDC bench range, the 2112F is the entry 29 kVA spot welder; its projection counterpart is the 2113F at 38 kVA.
| Weight | 130 lbs |
|---|---|
| Configuration | Spot |
| Standard Control Unit | 1592NA |
| Nominal Power 20% (kVA) | 46 |
| Nominal Power 50% (kVA) | 29 |
| Nominal Power 100% (kVA) | 21 |
| Max Welding Current (A) | 19000 |
| Max Weld Curr 50mΩ Load (kA) | 19 |
| Max Weld Curr 100mΩ Load (kA) | 17 |
| Max Weld Curr 200mΩ Load (kA) | 14 |
| No-Load Secondary Voltage (V) | 5 |
| Thermal Current 100% (A) | 4000 |
| Supply | 400 V / 50 Hz |
| Mains Cable (L=30m, 380–415 V) | 0.02 in² (10 mm²) |
| Delayed Fuses (380–415 V) | 40 A |
| Electrode Taper Ø | 0.50 in. (12.7 mm) |
| Min Gap | 4.65 in. (118 mm) |
| Max Gap | 4.65 in. (118 mm) |
| Min Throat Depth | 6.30 in. (160 mm) |
| Max Electrode Force | 420 lbs (187 daN) |
| Max Elec Force 6 bar (Std) | 420 lbs (187 daN) |
| Electrode Stroke | 1.97 in. (50 mm) |
| Compressed Air | 94 psi (6.5 bar) |
| Air Consump /1000 (Std 20mm) | 53 ft³ (1.5 Nm³) |
| Air Consump /1000 (Max) | 78 ft³ (2.2 Nm³) |
| Air Supply Hose Ø | 0.31 in. (8 mm) |
| Water Cooling Flow | 1.59 gpm (6 lpm) |
| Aerial Noise | 76 dB(A) |
| Control Unit Net Weight | 79 lbs (36 kg) |
