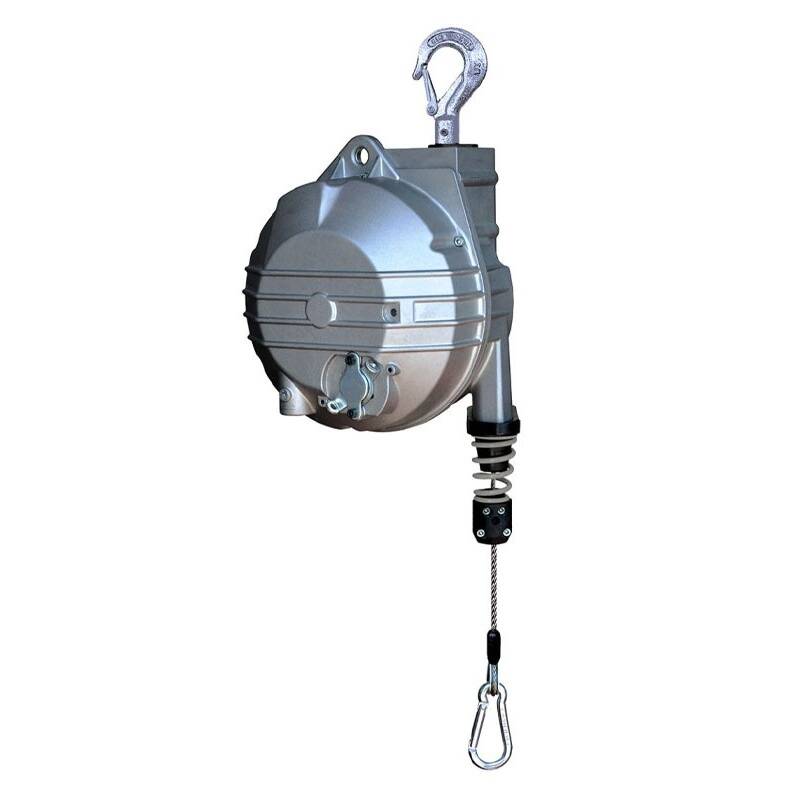

TECNA 9522 Stainless Steel Cable Zero-Gravity Balancer — 66.14–88.18 lbs Capacity

Description

The TECNA 9522 is a stainless steel cable zero-gravity balancer for tool suspension. Unlike a retractor, a zero-gravity balancer holds the suspended load at whatever height the operator leaves it — once set, the load remains stationary at the released position rather than returning to a rest height. The 9522 carries a load capacity of 66.14–88.18 lbs (30–40 kg) over a working stroke of 106.3 in. (2700 mm), with a stainless steel rope and ribbed cast aluminum body running on a tapered drum and ball bearings. Capacity is adjustable by means of a worm screw, and an adjustable stroke limiting device sets the working range to the application. Version .F adds a friction/brake that controls drum rotation speed; this version is configured at time of order and cannot be retrofitted to installed units.

Features

• Ribbed and sealed construction in cast aluminum alloy.
• Stainless steel rope.
• Load capacity of 66.14–88.18 lbs (30–40 kg); working stroke of 106.3 in. (2700 mm).
• Adjustable capacity by means of a worm screw.
• Safety suspension.
• Safety device blocks the load if the spring fails (standard on capacities >3 kg).
• Upper rotary suspension with safety hook.
• Locking device blocks the load at any height in the stroke.
• Adjustable stroke limiting device.
• Tapered drum rotating on ball bearings.
• Cable guide in antifriction material.
• Rotary upper hook with ball bearing.
• Inert spring drum assembly.
• Available as version .F — equipped with a friction/brake that controls drum rotation speed (configured at time of order; cannot be retrofitted).
• Optional accessory: rotary insulating device (Option RI, art. 70477) — swivel hook providing 360° rotation and electrical isolation of the hook area.
• Optional accessory: protective rubber guard — prolongs balancer service life by protecting against bumps and dings.
