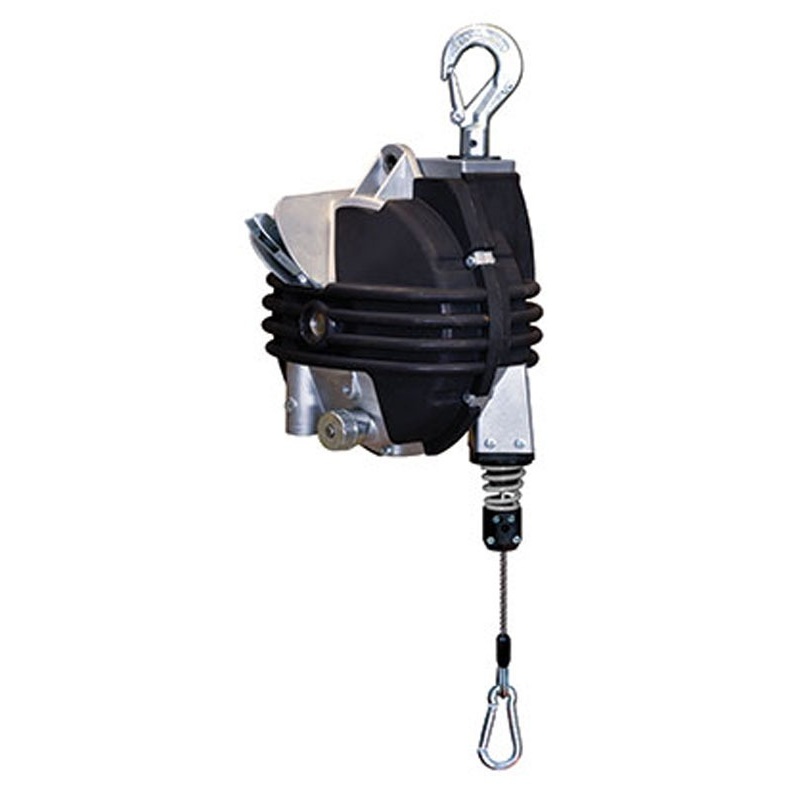

TECNA 9367G zero-gravity balancer with floor-controlled lock/unlock device — 99.21–121.25 lbs capacity over a 78.74-in. stroke. Stainless steel rope; cast aluminum body with a shock-absorbent rubber coating (version G). Adjustable capacity. Load holds position anywhere in the stroke, and the floor-controlled lock/unlock device lets the operator lock or release the balancer from floor level.
The TECNA 9367G is a stainless steel cable zero-gravity balancer with a floor-controlled lock/unlock device. Unlike a retractor, a zero-gravity balancer holds the suspended load at whatever height the operator leaves it — once set, the load remains stationary at the released position rather than returning to a rest height. The integrated locking-unlocking device lets the operator lock the balancer or release it for free movement directly from floor level, without reaching the unit itself. The 9367G carries a load capacity of 99.21–121.25 lbs (45–55 kg) over a working stroke of 78.74 in. (2000 mm), with a stainless steel rope and cast aluminum body with a shock-absorbent rubber coating (version G) running on a tapered drum and ball bearings. Capacity is adjustable by means of a worm screw, and an adjustable stroke limiting device sets the working range to the application. The 9367G ships as version .B with the floor-controlled lock/unlock device, configured at time of order and not retrofittable to installed units. Version G adds a shock-absorbent rubber coating to the housing for impact protection.
| Weight | 27.34 lbs |
|---|---|
| Lower Capacity (lbs) | 99.21 |
| Upper Capacity (lbs) | 121.25 |
| Stroke Length (in.) | 78.74 |
| Cable Type | Stainless Steel |
| Body Material | Aluminum with Rubber Coating |
| STOP Device | N/A |
| Lock/Unlock Device | .B (configured at order) |
| Product Type |
