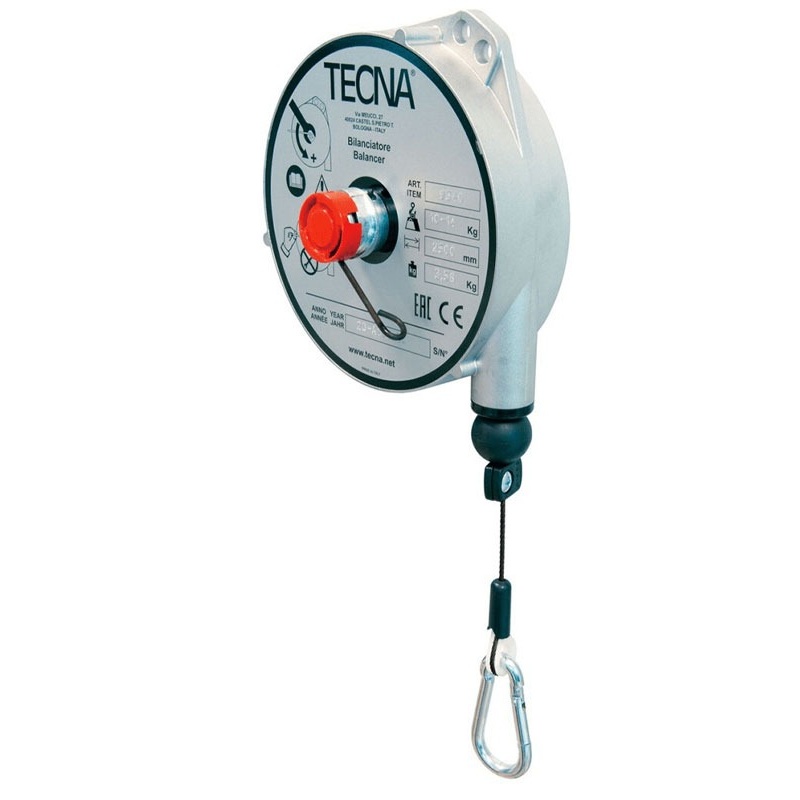

TECNA 9347NY retractor tool balancer — 8.82–13.23 lbs capacity over a 98.43-in. stroke. Dyneema® rope; cast aluminum body. Adjustable capacity; the cable retracts the tool to its rest height when released. A stroke-stop device locks the cable at any position with a simple pull on the load.
The TECNA 9347NY is a nylon-cable retractor balancer for tool suspension. A retractor supports the weight of a suspended tool and retracts the cable to a rest height when the tool is released, reducing operator fatigue and keeping the tool clear of the work area between uses. The 9347NY carries a load capacity of 8.82–13.23 lbs (4.0–6.0 kg) over a working stroke of 98.43 in. (2500 mm), with a Dyneema® rope and cast aluminum body. Capacity is adjustable and an adjustable stroke limiting device sets the working range to the application. An integrated stop-stroke device lets the operator lock the cable at any position with a simple action on the load, useful when the tool needs to stay at a fixed height between uses.
| Lower Capacity (lbs) | 8.82 |
|---|---|
| Upper Capacity (lbs) | 13.23 |
| Stroke Length (in.) | 98.43 |
| Cable Type | Dyneema |
| Body Material | Aluminum |
| STOP Device | Yes |
| Product Type |
