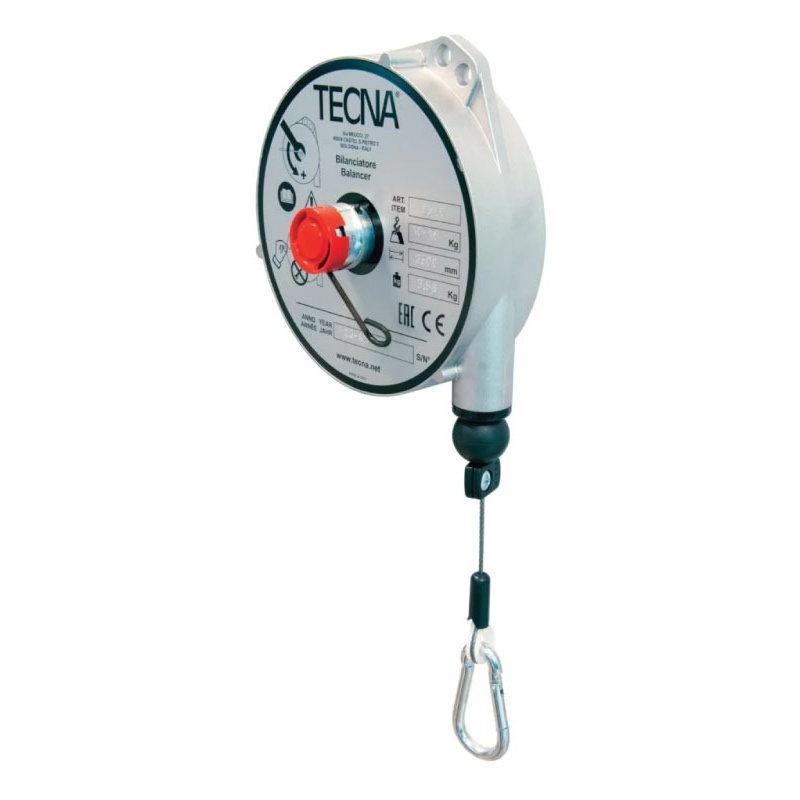

TECNA 9340 retractor tool balancer — 22.05–30.86 lbs capacity over a 98.43-in. stroke. Stainless steel rope; cast aluminum body. Adjustable capacity; the cable retracts the tool to its rest height when released.
The TECNA 9340 is a stainless steel cable retractor balancer for tool suspension. A retractor supports the weight of a suspended tool and retracts the cable to a rest height when the tool is released, reducing operator fatigue and keeping the tool clear of the work area between uses. The 9340 carries a load capacity of 22.05–30.86 lbs (10–14 kg) over a working stroke of 98.43 in. (2500 mm), with a stainless steel rope and cast aluminum body. Capacity is adjustable and an adjustable stroke limiting device sets the working range to the application.
| Weight | 7.89 lbs |
|---|---|
| Lower Capacity (lbs) | 22.05 |
| Upper Capacity (lbs) | 30.86 |
| Stroke Length (in.) | 98.43 |
| Cable Type | Stainless Steel |
| Body Material | Aluminum |
| STOP Device | No |
| Product Type |
