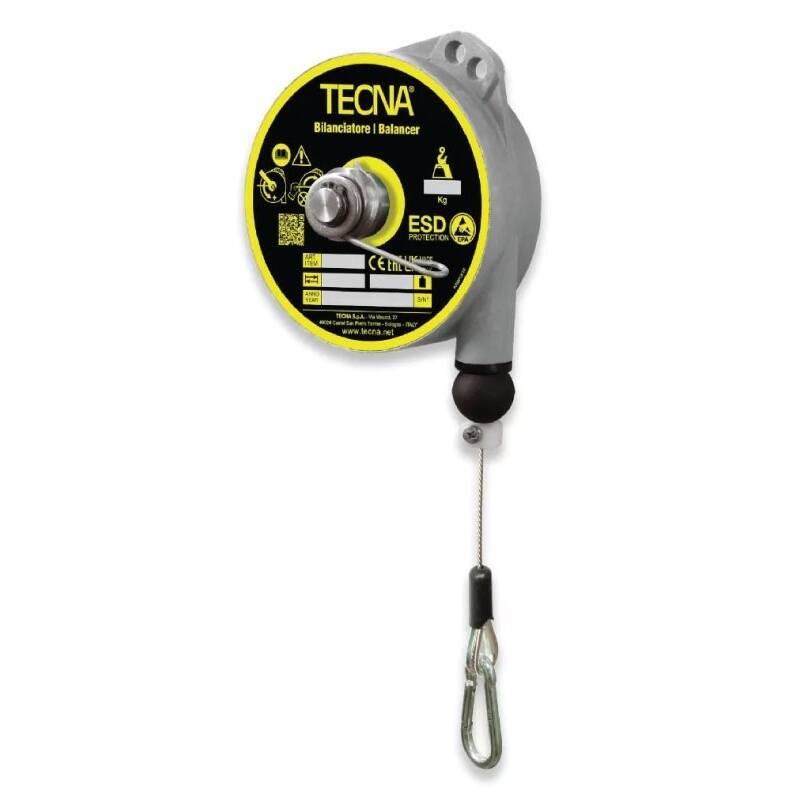

TECNA 9339ES ESD-protected tool retractor — 17.64–22.05 lbs capacity over a 98.43-in. stroke. Stainless steel rope; cast aluminum body; conductive construction for use in ESD-protected areas (EPA). Adjustable capacity.
The TECNA 9339ES is an ESD-protected tool retractor for use in electrostatic-discharge-protected areas. Conductive construction throughout the housing, rope, and connection points lets the 9339ES dissipate static charge instead of accumulating it, protecting electronic components and PCB assemblies that are handled near the suspended tool. The 9339ES carries a load capacity of 17.64–22.05 lbs (8.0–10.0 kg) over a working stroke of 98.43 in. (2500 mm), with a stainless steel rope and cast aluminum body. Capacity is adjustable and the stroke limiting device sets the working range to the application. Within the 2500mm ESD retractor sub-line, the 9339ES sits between the 9336LES (1.1–4.41 lbs) and the 9340ES (22.05–30.86 lbs); all share the same 98.43-in. stroke.
