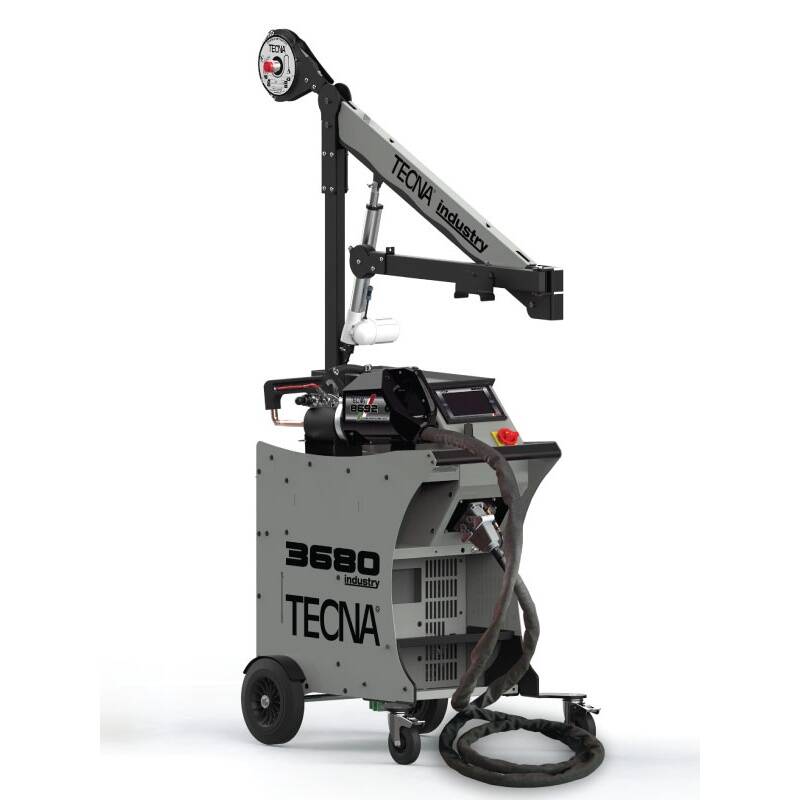

TECNA 3680Si industrial welding station — a wheeled MFDC inverter spot welding system with the patented 8692 C-gun (15,500 A, 1,382 lbs force), motorized suspension arm, Bowden balancer retractor, and SMART weld-by-weld control.
The TECNA 3680Si is a complete industrial spot welding station built around a three-phase MFDC inverter and the patented 8692 C-gun. It delivers 15,500 amps of welding current and up to 1,382 lbs (615 daN) of electrode force at 8 bar, with TECNA SMART MODE automatically adjusting welding parameters weld by weld. The wheeled console integrates a motorized suspension arm, a Bowden balancer retractor, and a 6.6 gallon (25 L) water-cooling tank, and is predisposed for robot/cobot integration.
| Weight | 364 lbs |
|---|---|
| Dimensions | 38.58 × 28.35 × 91.73 in |
| Product Type | |
| Gun Type | C-Type |
| Power Supply | |
| Supply | 220 V / 50–60 Hz |
| Delayed Fuses | 50 A (220 V) / 32 A (400 V) |
| Nominal Power 50% (kVA) | 22 |
| Max Welding Power (kVA) | 129 |
| Thermal Current 100% (A) | 2050 |
| No-Load Secondary Voltage (V) | 7.7 |
| Max Welding Current (A) | 15500 |
| Max Electrode Force | 1382 lbs (615 daN) |
| Max Electrode Force @ 8 bar | 1382 lbs (615 daN) |
| Included Gun | 8692 (C-Type) |
| Standard Arm | 8685/W/C (160 mm) |
| Gun Weight (without arms) | 24 lbs (10.8 kg) |
| Cable Length | 13.12 ft (4 m) or 19.69 ft (6 m) |
| Water Tank Capacity | 6.6 gal (25 l) |
| Suspension | Motorized arm with Bowden balancer retractor |
| Control Mode | SMART (auto weld-by-weld adjustment) |
| Robot/Cobot Ready | Yes |
| Actuator Type | |
| Supply Notes | 220 V / 50–60 Hz 3-Phase (US); 400 V / 50 Hz 3-Phase |
