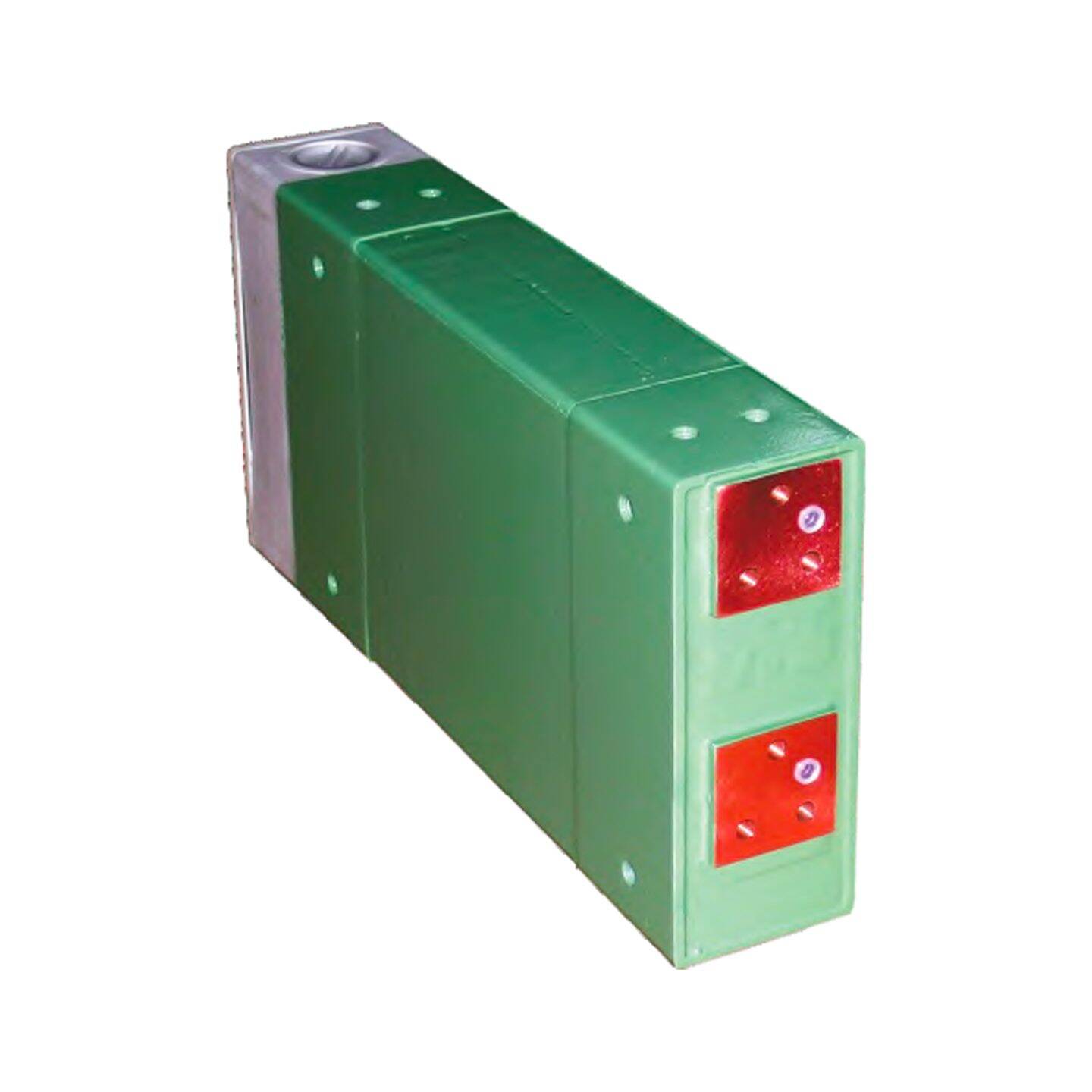

TECNA 32633 single-phase resistance welding transformer — 45 kVA at 50% duty, 380 V / 50 Hz primary (other voltages on request). Water-cooled with epoxy-coated windings.
The TECNA 32633 is a single-phase resistance welding transformer rated at 45 kVA (50% duty cycle). It uses a fully water-cooled core with epoxy casting-resin coated windings, and is supplied with a standard 380 V / 50 Hz primary — other primary voltages and frequencies, including US 480 V / 60 Hz, are available on request. Manufactured to ISO 5826.
Part of the TECNA single-phase transformer range; related models in the same family include 33413, 32725.
| Weight | 106 lbs |
|---|---|
| Product Type | |
| Phase | Single-Phase |
| Nominal Power 50% (kVA) | 45 |
| Primary Supply U1 / Frequency | 380 V / 50 Hz (other voltages/frequencies on request) |
| Pri Thermal Curr I1 100% (A) | 84 |
| No-Load Sec Voltage V20 (V) | 5.2 |
| Sec Thermal Curr I2 100% (kA) | 6 |
| Short-Circuit Voltage Vcc (%) | 9.2 |
| Cooling Water Flow | 1.06 gpm (4 l/min) |
| Secondary Terminal Stud (D) | M10 |
| Cable Gland (PG) | PG36 |
| Body Length L1 (max) | 19.02 in (483 mm) |
| Mounting Length L2 | 12.6 in (320 mm) |
| Housing Finish | RAL 6011 |
| Cooling | Water-Cooled |
| Standard | ISO 5826 |
