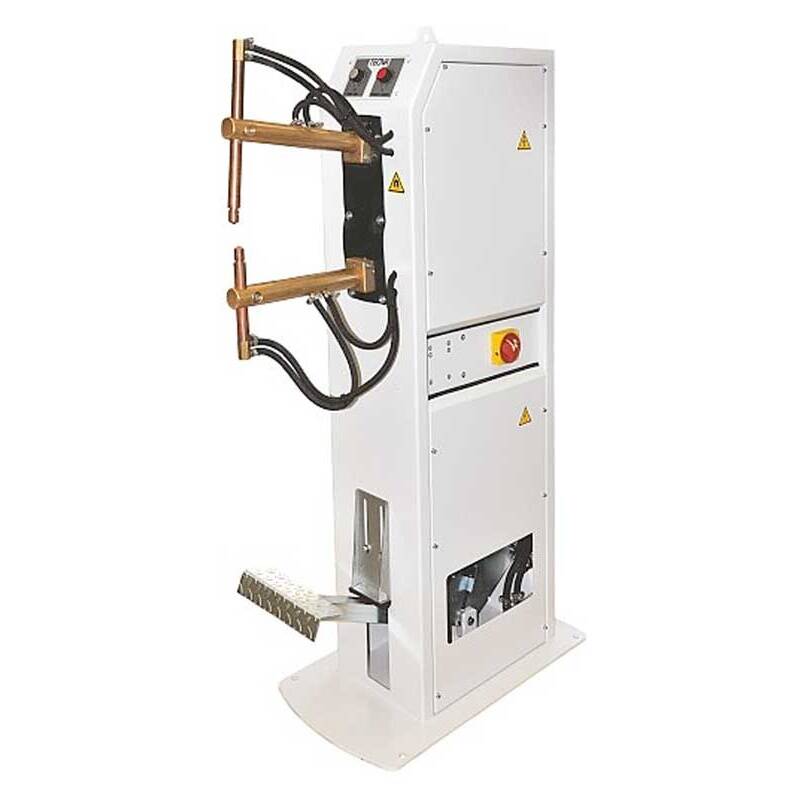

TECNA 4642N Rocker Arm Spot Welder — 20 kVA Foot-Operated Single-Phase AC

Description

The TECNA 4642N pairs a 20 kVA single-phase AC transformer with mechanical foot-pedal actuation. The 4642N provides a maximum welding current of 9,600 amps, a maximum electrode force of 337 lbs, and a maximum throat depth of 27.56 in. Arm length, electrode stroke, and throat depth are all independently adjustable to accommodate varied part geometries. A water-cooled, epoxy-resin-coated transformer supports extended duty cycles. The standard TE101 microprocessor weld control is front-mounted for real-time parameter viewing. Within the 4640-series, the 4642N shares the 20 kVA rating of the 4641N but extends maximum throat depth from 21.65 in. to 27.56 in., providing additional reach for larger sheet metal assemblies without stepping up to the higher-power 4644N.

Features

• TE101 microprocessor weld control, front-mounted for real-time parameter viewing.
• Maximum welding current of 9,600 amps with maximum electrode force of 337 lbs.
• Chromium-copper electrode holders, mountable at 12° and 90° positions in the arm.
• Mechanical foot-pedal actuation; additional foot pedal (optional) for program #2 recall.
• Adjustable arm length, adjustable electrode stroke, and adjustable throat depth up to 27.56 in.
• Optional UNITROL Soft Touch Pinch Point Safety System available.

Installation Requirements

• Electrical supply: Standard configuration: 220 / 440 V at 60 Hz. Other voltages and frequencies available on request.
• Water cooling: specification available on request.
• Net weight: 322 lbs. Insulation class F.
