Ceiling-Mounted Bridge Rail Welding Gun Suspension System

Description

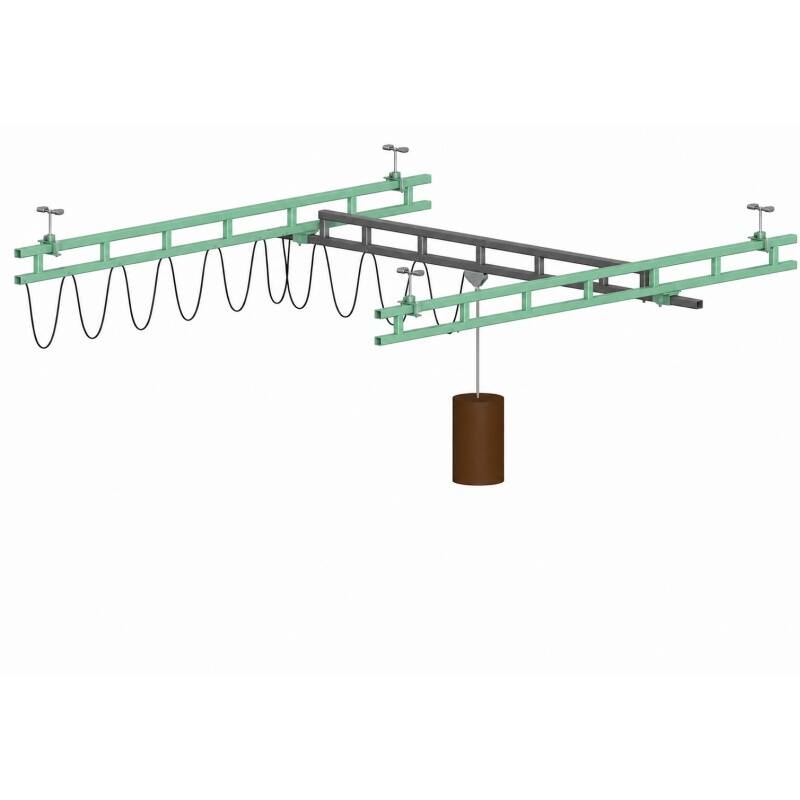

The ceiling-mounted bridge rail system suspends a portable spot welding gun over a rectangular work area. A trolley travels along the bridge while the bridge itself travels along parallel runways; paired with a properly sized tool balancer, the system delivers controlled movement through all three axes of motion. Capacities range from 150 to 4,000 lbs, with rectangular coverage up to a 34-ft bridge span and 124-ft runways standard, and standard support distances of 20, 25, and 30 feet. Depending on ceiling height, the runways mount directly to building beams or hang from threaded rod cross-braced to pipe or structural supports. Because the system is ceiling-mounted, no floor-standing support steel interferes with the handling operation — the work area stays clear of obstruction. A building with adequate overhead structure is required to hang the crane.

Features

• Capacities from 150 to 4,000 lbs.
• Rectangular coverage with up to a 34-ft bridge and 124-ft runways standard; support distances of 20, 25, and 30 feet.
• Enclosed track protects the rolling surface for easy trolley movement and long service life.
• Rigid runways for superior load positioning — no drifting or “crabwalking” of the bridge.
• No floor support structures, keeping work areas clear of obstruction.
• Smooth rolling surfaces for easier movement of bridge and trolleys.
• Multiple track profiles and spanning capabilities — adaptable, flexible, and cost competitive.
• Simple installation.

Options

• Aluminum or stainless steel track.
• Aluminum or coped aluminum bridge.
• Cantilevered supports.
• Seismic Zone IV construction.
• Motorized bridge and trolley drives.
• Galvanized finish or custom paint colors.

Requesting a Quote

Bridge rail systems are configured to your application. Add this item to your quote, and include the following in the order notes at checkout so we can spec your system accurately:

• Weight of the welding gun or tool to be suspended (or required capacity).
• Coverage area needed: bridge span and runway length.
• Ceiling height and overhead structure details: beam mounting or threaded-rod suspension.
• Track material preference: steel, aluminum, or stainless steel.
• Any options — motorization, cantilevered supports, or Seismic Zone IV requirements.
• Finish requirements: standard, galvanized, or custom paint color.
